PBH Series.
Use pressure difference control system, low oil temperature and less overflow, stable and reliable. Multiple choices of toolings and clampings. High-response hydraulic control technology brings higher speed, higher efficiency, and more stabilized precision. Big stroke, big daylight, wide range of applications. Extension to bending automation is supported.
Información:

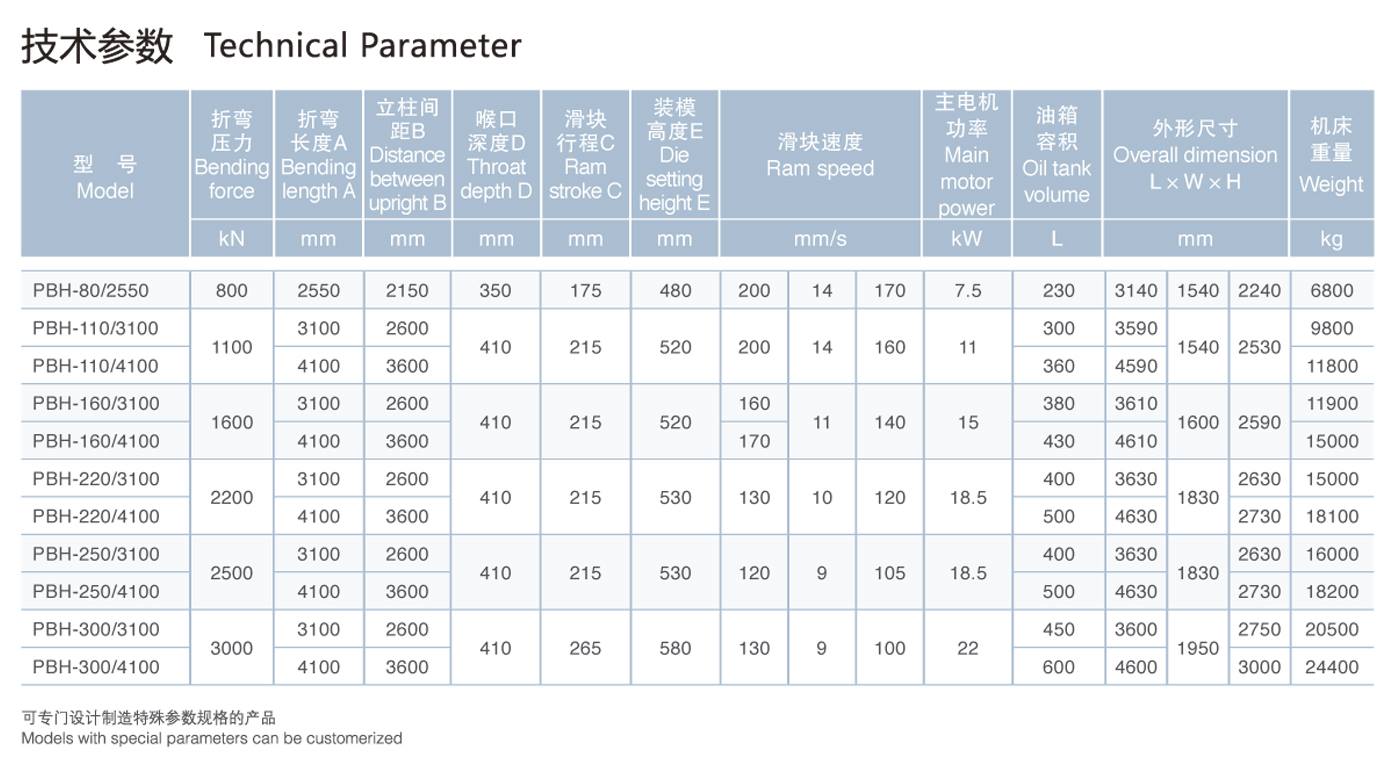

- Especificaciones
- Configuraciones
Numerical control system
CNC system standard configuration for DA56S, if the bending machine numerical control shaft is greater than (4 + 1) axis, suggest matching DA66T CNC system.
X, R behind two axis numerical control
Behind the standard configuration for X, R axis two axis numerical control, block along a straight line guide rail move around.
Quick grip on mould machinery
Mould clamping device on the standard configuration for mechanical quick grip.
Lower die 2 - V quick change
Lower die adopts double V quick change clamping method.
Step by step from the former carrier adjustment
Standard configuration is step by step from former carrier adjustment.
