PBE Series.
Mechanical servo drive, low cost. Oil-free operations, easy for maintenance. Integrated backgauge system, suitable for complicated parts. Embedded HMI interface, easy to operate. Integrated work station, safe and reliable. Extension to bending automation is supported.
Información:

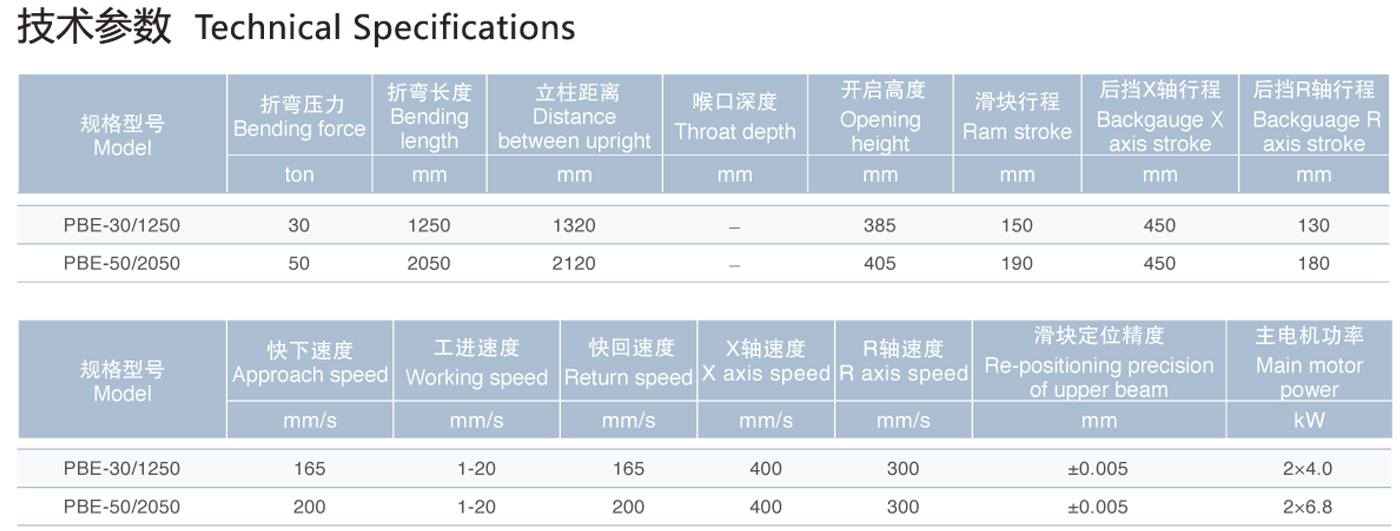

- Especificaciones
- Configuraciones
CNC system
7" widescreen color TFT.
The most senior axis control (Y1, Y2, two additional axis).
266 MHZ processors and memory capacity of 64 MB.
Mold base, 30 upper die, die under 30.
USB storage interface, RS232 interface.
Real-time WINDOWS operating platform, guarantee the stability of the system operation support instantly turned off.
LED lighting
Humanized design of LED cold light illumination, provides the best operating environment.
Work is not easy to fatigue for a long time.
Lower die 2 - V quick change
Lower die adopts double V quick change clamping method, optional single V mechanical clamping.
Quick grip on mould machinery
Mould clamping device on the standard configuration for mechanical quick grip.
After the keep-off
Overall structure using aluminum alloy material, high rigidity, fast.
Standard X, R two axis numerical control shaft, block along the cylindrical guide can move around.
